Technical Data |
| |

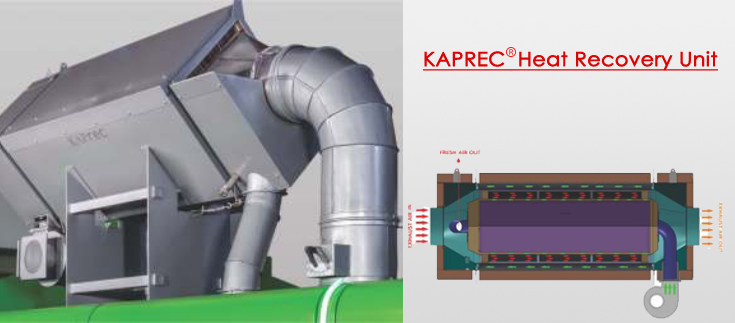

Air-to-Air Heat recovery |
| |
Completely pre-assembled and ready for installation. |
| |
Savings up to 30% of thermal energy. |
| |
Payback period, as low as 12 months, depending upon the fuel used. |
| |
Minimum cleaning frequency |
| |
Achieving temperature faster and equilibrium in each chamber |
| |
All components which will come into contact with hot air are of SS304. |
| |
Economical even for small machines, due to modular design. |
| |
Clean fresh air passes through segment of heat exchanger (no obstacles in hot air passage) |
| |
No reinforcement / replacement of exhaust fan required even at the time of retrofitting. |
| |
Can be easily retrofitted into the existing exhaust ducts – no large scale / expensive re-ducting required. |
| |
Heated-up fresh air directly fed into the stenter compartment that leads to virtually no heat radiation loss. |
| |
50mm thick high density insulation is provided inside the HRU to prevent heat loss even when exhaust air is passing through HRU. |
